Live labs & production systems

Running systems, retired systems, and the repos behind both.

Nothing here is a mockup. These are public systems I built and operate — the platform and reliability evidence behind the consulting. One cluster is answering the request you just made; one was designed, operated, and shut down when the GPU bill stopped being worth it. Both trees are public, and each card links the exact directory worth reading.

Here from a repository link: the cluster those manifests deploy is the one answering this request. If you want a second opinion on yours, the first 45 minutes are free.

01 / Hybrid Kubernetes

Three nodes, no managed control plane — and this page runs on it.

A cluster bootstrapped from bare nodes with kubeadm: an amd64 control plane behind a Cilium Gateway, a Raspberry Pi carrying the Cloudflare tunnel, and a cloud worker in Atlanta — stitched together over WireGuard instead of a LAN, reconciled from Git.

Kubernetes / GitOps Live

sirius-homek8s — six Flux Kustomizations, all Ready

Cloudflare terminates TLS and carries every public request through a cloudflared tunnel on rpi to the Cilium Gateway on siriussec. No cloud load balancer, no NodePort exposure: the tunnel is the only public ingress.

  • Three nodes — siriussec (amd64 control plane), rpi (arm64 traffic hub), linode (cloud worker)
  • WireGuard mesh in 10.10.0.0/24; Cilium routes pod traffic natively, no VXLAN overlay, kube-proxy removed
  • Gateway API HTTPRoutes onto Cilium's eBPF datapath; Cloudflare Tunnel as sole ingress
  • Flux CD — six Kustomizations Ready=True
  • CloudNativePG postgresql:16 for Forgejo and one portal
  • Multi-arch CI runners building the images this Deployment rolls — including this site
  • 169 commits on master, public on Forgejo

This page is served from that cluster — the pod answering you is Flux-managed in forgejo.siriusdevops.com/sirius/homek8s.

02 / Retired GPU platform

AgentForge — a GitOps GPU platform. Designed, run, shut down.

A cloud-native platform for high-throughput vLLM inference across three GPU tiers, 100% Git-driven via Terraform + Flux CD, with KEDA HTTP scale-to-zero that took idle GPU pools to zero replicas while weights stayed cached on a PVC.

Cloud platform / GitOps Decommissioned

Cluster destroyed. Terraform and manifests public.

When even the L4 + control-plane bill stopped making sense, the cluster was destroyed. Scale-to-zero was the rehearsal for scale-to-nothing. What survives is the part you actually own: node-pool definitions, vLLM servers, KEDA objects, NetworkPolicies and the Flux wiring that applied them.

  • vLLM serving Qwen 3.x on L4 / RTX PRO 6000 / A100 80GB spot pools
  • KEDA HTTPScaledObject at replicas.min: 0 — idle reasoning capacity costs nothing
  • Zero-touch GitOps: every change audited and reconciled from Git by Flux CD
  • Per-tenant CloudNativePG databases with a pgvector RAG init job per agent
  • 1,018 commits on master, public on Forgejo

Repo README: “This is not a live cluster.” — forgejo.siriusdevops.com/sirius/gcloud-lab

03 / Raw screens

Actual sessions. Not mockups.

Unretouched terminal captures from real operations. The vLLM and model-delivery captures are from the GKE lab while it ran; cluster identifiers are redacted and nothing else is retouched.

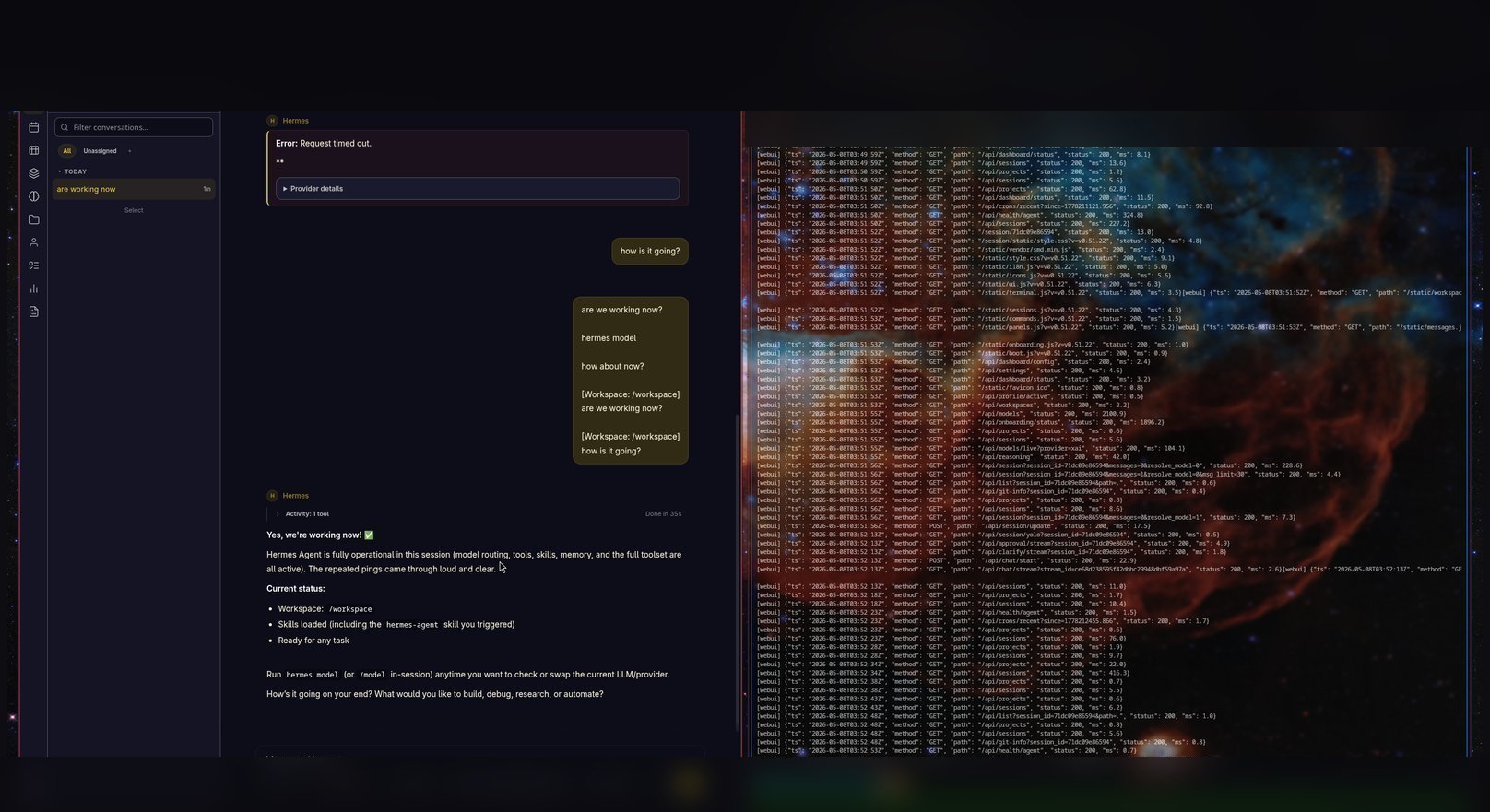

k9s tailing HTTP logs from an AI agent service running in-cluster while its web UI responds in the browser
agent ops AI agent served from Kubernetes. Web UI on the left; k9s on the right streaming the same service's request log — every call returning 200 from inside the cluster.

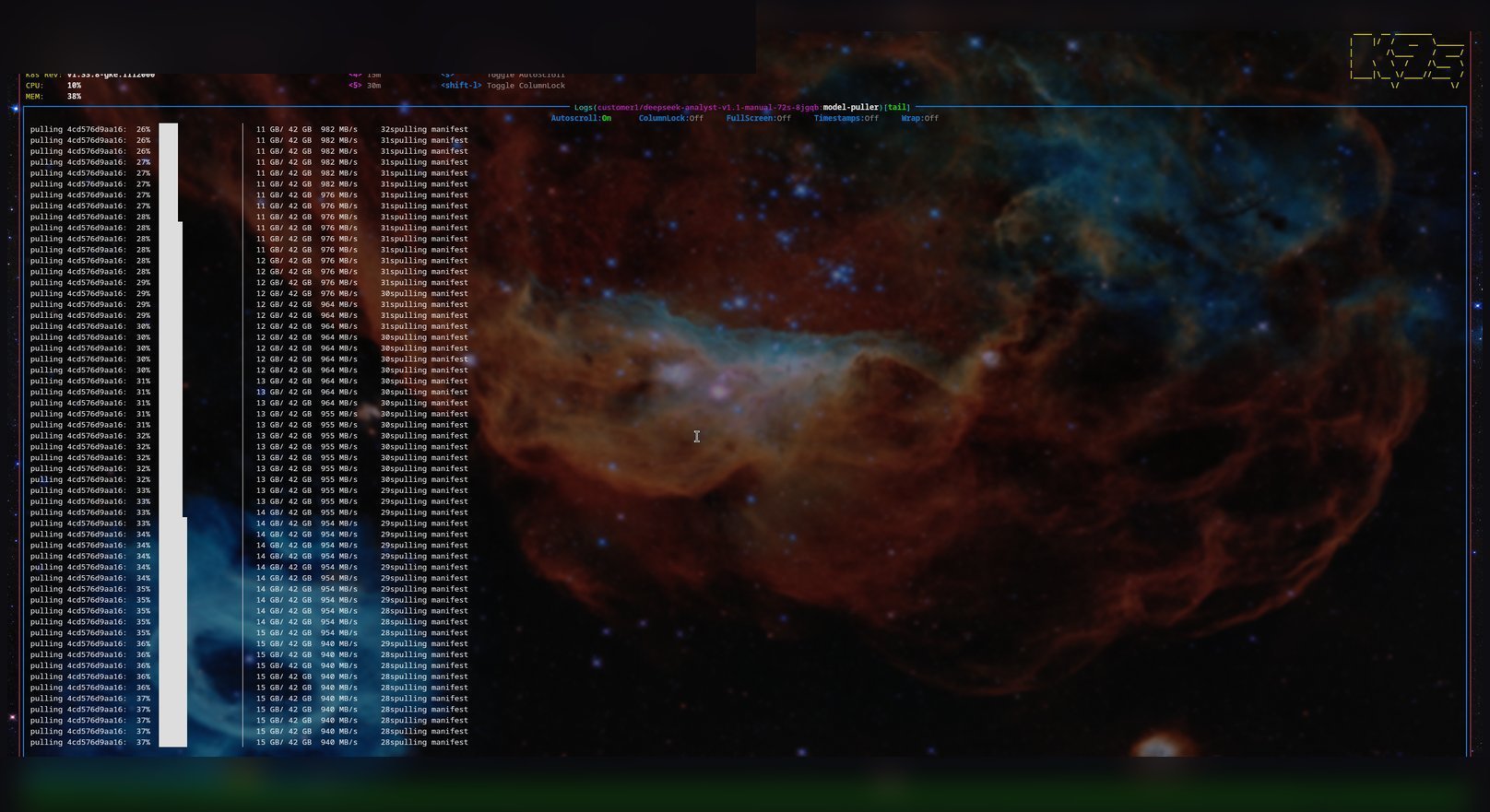

k9s showing a model-puller job downloading a 42GB model at 982 MB/s
model delivery 42 GB model pull at ~982 MB/s. In-cluster init job streaming a 27B analyst model onto GPU nodes — watched live through k9s. Weights land on a PVC so a scale-up does not re-pull them.

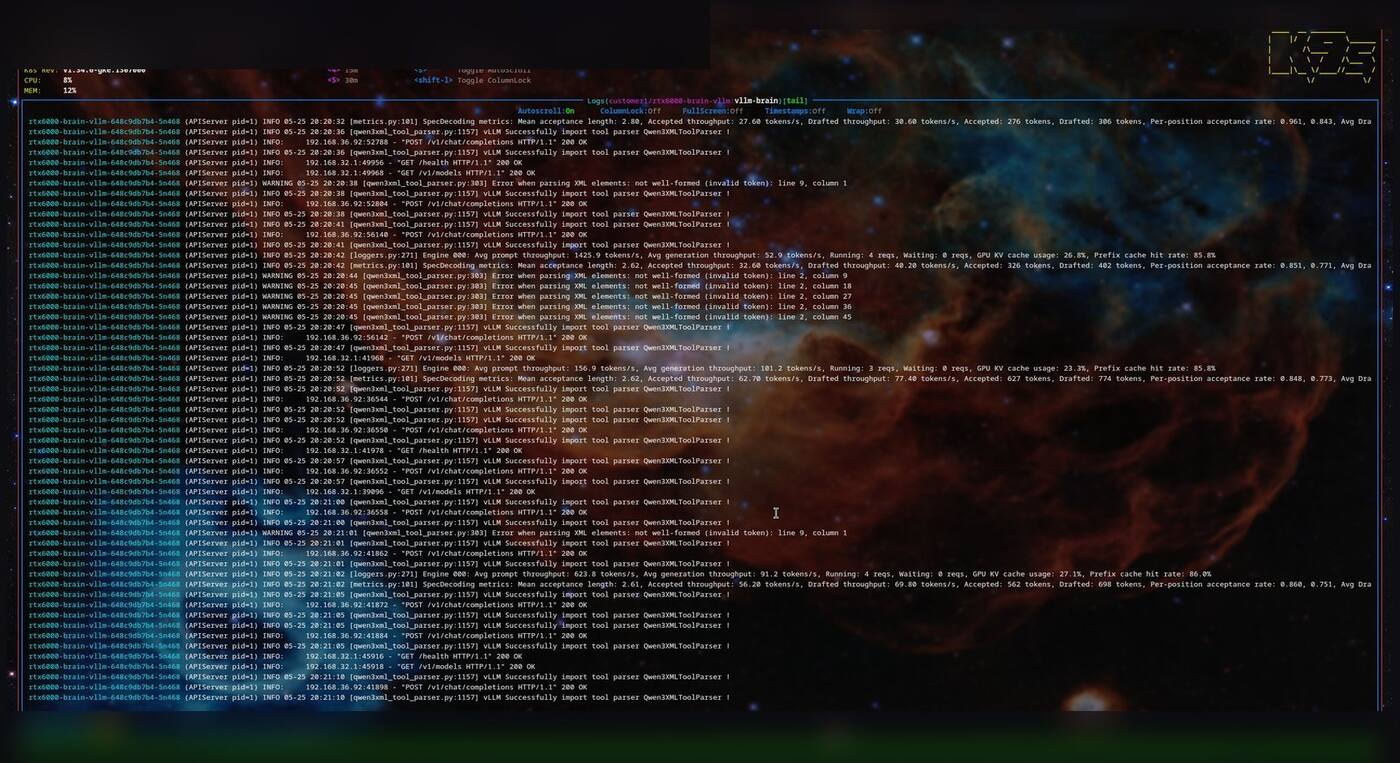

k9s tailing vLLM inference server logs with throughput and KV-cache metrics
inference Live vLLM serving Qwen3. Real-time inference metrics: generation throughput, GPU KV cache usage, prefix cache hit rate — plus tool-call parsing on a multi-tenant deployment.

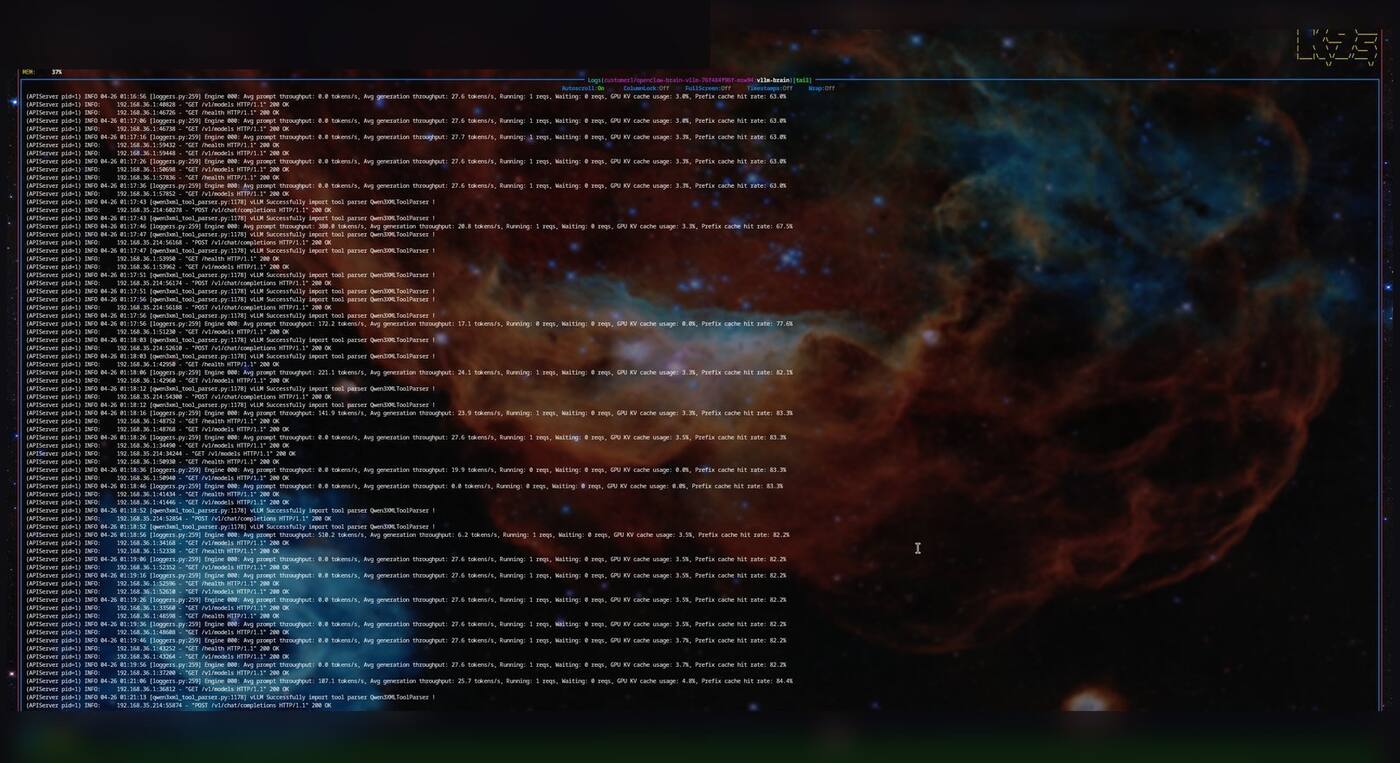

second k9s session tailing vLLM API traffic with 200 OK responses
inference API traffic under load. POST /v1/chat/completions requests completing 200 OK while speculative-decoding acceptance rates stream past — one namespace per tenant, separated by default-deny NetworkPolicy.

04 / Real-time systems

Event pipelines and agent wiring.

Built on the same lab, framed as integration patterns: how events, model calls and memory fit together when the system has to run unattended.

Event-driven services

Trading platform

Event-driven microservices on GKE — Next.js dashboard, Hyperliquid + Solana execution, Kafka streaming, Redis caching, PostgreSQL. mTLS, cert-manager, default-deny network policies, full CI/CD. Decommissioned with the lab.

Autonomous pipelines

News quant pipeline

Scraped 330+ global news and market feeds, ran a locally served 27B model for analysis, and generated signals — VPC-private, self-running via CronJobs. The pattern is scheduled ingest → local model → structured output.

Agent infrastructure

Hermes-style agents with their own memory

A CloudNativePG cluster per agent, a one-shot RAG init job enabling pgvector, durable memory tables, scheduled backups, and NetworkPolicies that define exactly what a workload may reach. The agent gets a database and a tool list, not the cluster.

05 / Stack

The tools behind the work.

Infrastructure

Terraform1.7+
GKE / kubeadmCloud + bare metal
Cloudflare TunnelIngress

Orchestration

Flux CDGitOps
CiliumeBPF
Helm / KustomizeDeploy

AI / ML infra

vLLMServing
NVIDIA GPUsL4 · RTX PRO 6000 · A100
KEDAScale-to-zero

Database

PostgreSQL16 · CNPG
pgvectorAgent memory
Redis / KafkaStreaming

Security

SOPS + AgeSecrets
mTLSCerts
Cilium NetPolDefault-deny

Observability

PrometheusMetrics
GrafanaDashboards
k9sCLI
